Key Features

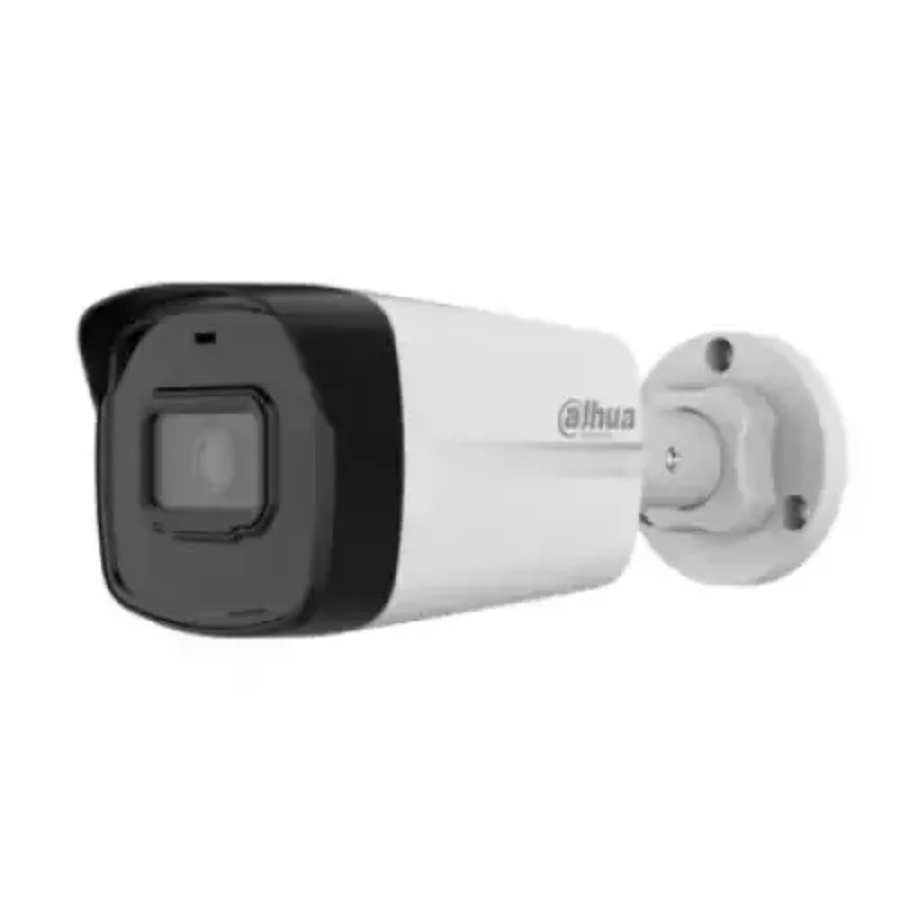

Model: DH-IPC-HFW1230TL2-S5
Image Sensor: 1/2.8" CMOS
Resolution: Max 2MP (1920 × 1080) @25/30 fps.
Lens: 3.6mm, Aperture: F2.0, IR Distance: 30 meters
Features: Motion detection, video tampering, IP67, Smart Codec, Abnormality Detection
Camera | |
| Image Sensor | 1/2.8" CMOS |
| Resolution | 1920 (H) × 1080 (V) |
| Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Day & Night | Auto (ICR)/Color/B/W |
| Min. Illumination | 0.01 lux@F2.0 (Color, 30 IRE) 0.001 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
| SNR (dB) | > 56 dB |
| Angle Adjustment | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360 |
Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 3.6 mm; |
| Aperture | F2.0 |
| Field of View | 3.6 mm: Horizontal: 84°; Vertical: 45°; Diagonal: 100° |
| Iris Type | Fixed |
| Close Focus Distance | 3.6 mm: 0.8 m (2.6 ft) |
| DORI Distance | 3.6 mm: 49.7 m(163.1 ft), 19.9 m(65.3 ft), 9.9 m(32.5 ft), 5.0 m(16.4 |
Illuminator | |
| IR LEDs | 2 (IR LED) |
| IR Distance | UP to 30 m (98.4 ft) (IR) |
| Illuminator Control | Auto; manual |
Video | |
| Video Compression | H.265; H.264; H.264B; 264H; MJPEG (Only supported by the sub stream) |
| Resolution | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Main Stream | 1920 × 1080@1–25/30 fps |
| Sub Stream | 704 × 576@1–25 fps704 × 480@1–30 fp |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Video Frame Rate | H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps |
| Stream Capability | 2 streams |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | DWDR |
| Gain Control | Auto; manual |
| Noise Reduction | 3D NR |
| Region of Interest (ROI) | Yes (4 areas) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Storage | |
| Network Storage | FTP |
Network | |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP |
| Interoperability | ONVIF(Profile S); CGI; P2P |
| API | Yes |
| User/Host | 6 (Total bandwidth: 36 M) |
| Client | IOS; Android |
| Web Browser | IE Chrome Firefox |
| App | Smart PSS; DSS; DMSS |
Interface | |
| Network Interface | RJ-45 (10/100 Base-T) |
Alarm | |
| General Alarm | Network disconnection; IP conflict; illegal access; motion detection; video tampering; security exceptio |
Environment | |
| Operating Temperature | –40 °C to +55 °C (–40 °F to +131 °F) |
| Operating Humidity | ≤ 95% |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Water Protection | IP67 |
Power | |
| Power Supply | 12V DC/PoE (802.3af) |
| PoE Standard | 802.3af |
| Power Consumption | Basic power consumption: 1.3 W (12 VDC); 2.1 W (PoE) Max. power consumption (ICR + H.265+IR intensity): 2.9 W (12 VDC); 3.9 W (PoE) |
Physical Information | |
| Casing Material | Plastic |
| Dimension | 198.9 mm × 80.2 mm × 76.2 mm (7.83" × 3.16" × 3.00")(L × W × H) |
| Weight | Net Weight: 0.25 kg (0.55 lb) Gross Weight; 0.40 kg (0.88 lb) |
Warranty Information | |
| Warranty | 1 Year |
The Dahua DH-IPC-HFW1230TL2-S5 2MP Bullet IP Camera is a high-performance surveillance system built for dependable, high-definition video monitoring in a variety of scenarios. This camera's 2-MP 1/2.8" CMOS image sensor captures high-quality images with a maximum resolution of 1920 × 1080 pixels. It also supports full HD video at 25/30 frames per second. This means that every picture is caught in stunning clarity, making it suitable for both home and commercial security applications. The camera's low illuminance qualities make it very useful in low-light circumstances. It has an infrared illuminator with a maximum range of 30 meters (98 ft), allowing for clear nighttime monitoring even in full darkness. This function is critical for ensuring security around the clock, such as monitoring. The DH-IPC-HFW1230TL2-S5 uses superior H.265 video compression technology, which has a high compression rate and an extremely low bit rate. This makes better use of bandwidth and storage resources while maintaining video quality. The H.265 codec, together with the SMART H.264+/H.265+ encoding choices, adapts dynamically to changing network circumstances and storage capacity, making it appropriate for both high and low-bandwidth applications. The camera incorporates many image enhancing technologies to improve video quality in a variety of settings. These include Digital Wide Dynamic Range (DWDR) for balanced exposure in scenes with both bright and dark areas, 3D Noise Reduction (3D NR) for reducing image noise in low-light conditions, High Light Compensation (HLC) to avoid glare from bright lights, and Backlight Compensation (BLC) to ensure clear images in backlit environments. The DH-IPC-HFW1230TL2-S5 has superior detecting capabilities that improve security measures. It includes motion detection to detect unusual activity, video tampering alerts to detect any attempts to obstruct the camera, network disconnection and IP conflict detection to ensure reliable connections, and illegal access detection to notify you of unauthorized camera access. The camera accepts both 12 VDC and PoE (Power over Ethernet) power supply, allowing for simple setup and integration into existing network systems. The camera's IP67 classification assures that it is dust-tight and water-resistant, allowing it to work reliably in harsh weather and outdoor locations. The Dahua DH-IPC-HFW1230TL2-S5 2MP Bullet IP Camera is a versatile and feature-rich security solution that provides high-definition video capture, quick data administration, and extensive monitoring capabilities for a variety of security requirements.
| Brands | Dahua |
